Chilled Water / Hot Water Buffer Tank
Stainless Steel Hydronic Buffer Tanks

For use with small chiller systems, radiant or hydronic heating, in-floor heating, and hydronic heat pump systems for interface with a floor heating loop. They can provide hydronic separation, add fluid volume to the system, and prevent short cycling of a hydronic heating or cooling system. These buffer tanks are made by Chiltrix and are used in a Chiltrix heat pump chiller system for floor heating and other radiant heating applications.

These small and price-competitive buffer tanks can also be used for fermentation, wood boiler, hot water buffer / storage purposes, chilled water storage tank applications, brewing and fermenting tank applications, or any purpose where a flexible multi-port, multi-purpose highly insulated stainless steel water tank is needed.

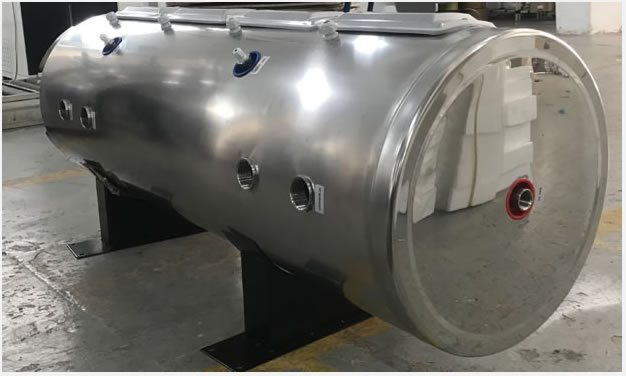

Picture of stainless steel chilled water / hot water buffer tank
37 Gallon Stainless Steel Buffer Tank. Can Mount Vertically or Horizontal (As Shown Above)
When Used Horizontally:  4' Ft.  8" Inches Wide  //   Height (Diameter + Cradle) is 25.5"

Stainless Steel Inner Tank

Stainless Steel Jacket

Vertical or Horizontal Mounting

50mm Thick Polyurethane Insulation

4 Heating Element Ports

4 Element/Thermostat Wells with Covers &
Wire Routing - Can Support 1 ,2, 3 or 4 Elements
up to 5,500W Each

4 Water Inlet Ports 1.5" NPT

4 Outlet Ports 1.5" NPT

2 Drain Ports 3/4" NPT

2  1/2" Sensor Wells

2  3/4" NPT Drain Ports

1 Anode Port

DIMENSIONSpicture of hydronic buffer tank for heating or cooling systems

For Complete Technical Details Visit This Page

SEE COMPLETE BUFFER TANK SPECIFICATONS
